Octo Repeater
One Master, 8 Remote Units
SKU
iR6-OC
Bands
B28/ B20/ B8/ B3/ B1/ B7
Port Sense
Yes
Monitoring
Yes
Cell Scanning
Yes
The Octo Repeater
The OCTO is a commercial grade cellular repeater that amplifies the signal for all mobile operators and for all services, 5G/4G/3G/2G. When connected to the StellaControl platform, the OCTO can be remotely managed, monitored, and adjusted, as well as receive real-time measurements of signal power, signal gain, and other control metrics for each band.

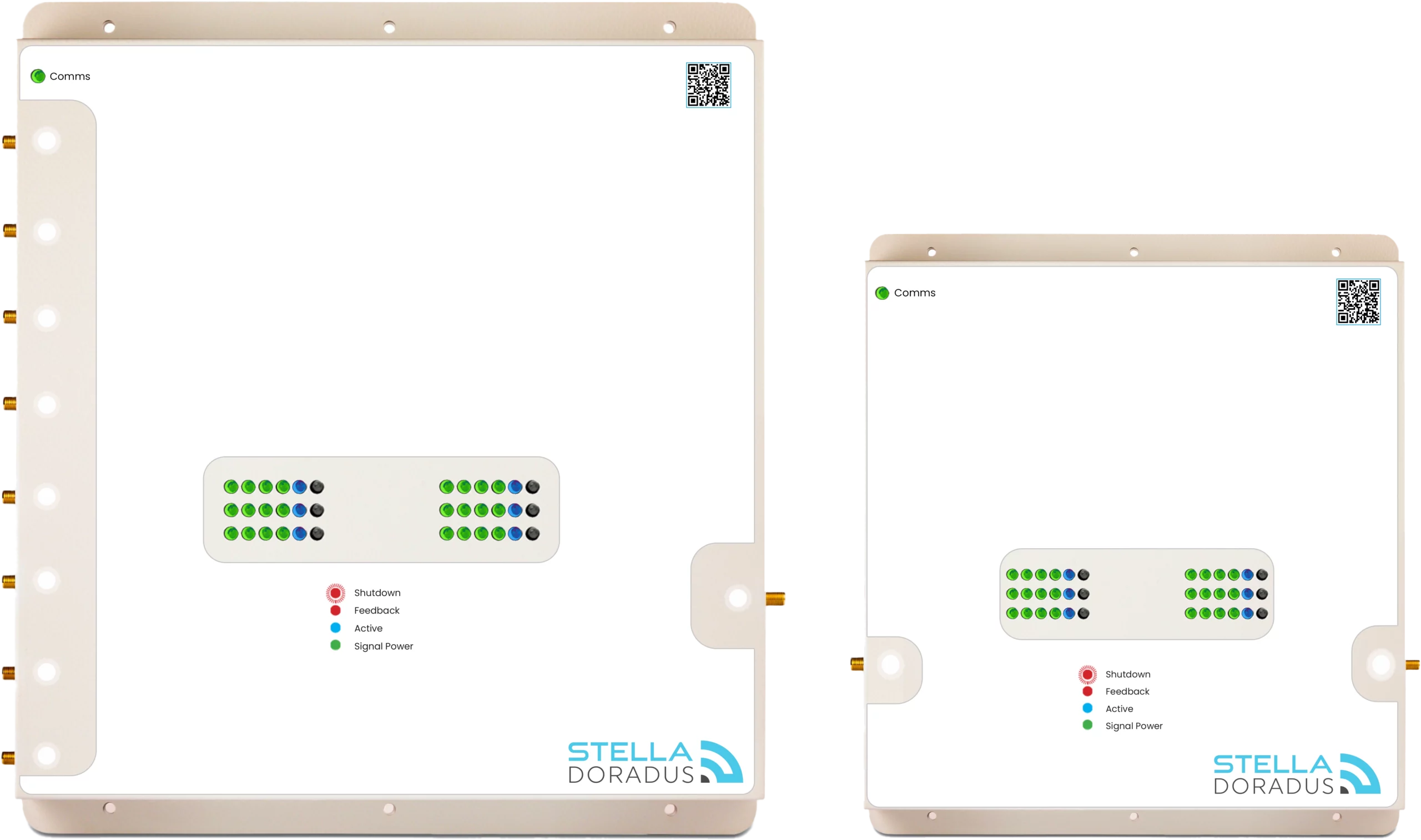

The system comprises of a Master and up to 8X remote units (RUs). Up to 3 antennas are typically attached to each RU. The distance between the Master and any of the RUs can be up to 100m. This allows coverage to be brought deep into any building.
Mains power to each of the eight RUs is supplied by the Master. (Power over Coax). No need to have a power socket at each RU making installation much easier.
Monitoring dashboard
The OS6 online dashboard provides comprehensive visibility of both real-time and historical RF performance metrics, including power levels, gain, and system status. An automatic network scan is performed weekly, with results displayed in the Network Scan panel for easy review and analysis.
The integrated PortSense monitoring feature allows installers and operators to verify that all connected hardware — including antennas and cabling — is functioning correctly. Any system alerts or anomalies are clearly displayed within the dashboard and can also be automatically forwarded via email notifications for proactive monitoring and maintenance.
PortSense
PortSense technology automatically detects when an antenna is connected to either the indoor or outdoor antenna port.
The new Smart Antennas feature an integrated white status LED, while corresponding white LEDs are also built directly into the repeater ports. When the antennas and cabling are connected correctly, both LEDs illuminate, providing installers with immediate visual confirmation that the hardware installation is functioning properly.
PortSense status is also continuously monitored through the StellaControl platform. If any hardware fault, disconnection, or system degradation is detected, automatic alerts can be generated to ensure rapid response and ongoing system reliability.
Mobile WebApp
Snap the QR code on the repeater with your phone to access the device dashboard.
Our 4 step process
Every professional repeater installation consists of 4 steps. Our certified installers are all trained in this process to ensure that all installations adhere to our exacting standards.
Step 1
Initial Review
Send us the plans of your building. We will create professional heat map designs showing antenna signal strengths per floor. BOMs and costs estimates will also be calculated.
Step 2
On-Site Survey
Visit the building to conduct site surveys using the Shark analyser. A Stella engineer will guide you through the on-site survey process.
Step 3
Design Proposal
The design is refined and accurate BOM is generated.
Step 4
Installation
Stella engineers will guide you through the installation of the equipment to ensure best results.
Want to Learn More?
StellaPlanner
Our online repeater design tool. Optimize antenna locations. View heat maps. Visualize the RF environment before and after system integration.
Case Studies
View our wide range of case studies, from underground car parks, to airports, hotels, hospitals plus more.
